Bridge anti-seismic solutions

OVM leads the industry in bridge seismic isolation technology, focusing on providingcomprehensive solutions for bridge engineering from design to construction with onestop services. This includes efficient bearing systems, advanced expansion devices,and high-performance dampers. By integrating innovative engineering technology andexcellent manufacturing processes, we ensure structural safety and durability.

Features

· Seismicisolation technology.Reduce structural responsethrough increasing structural damping, extending thenatural vibration period of structure,isolating seismicenergy to achieve excellent anti-seismic effect;
· Adopting seismicisolation technology.Compared withtraditionalanti-seismic structures, the acceleration ofisolated structures is only equivalent to 1/4~ 1/12 of theacceleration of traditional structures, greatly improvingsafety and reliability;
· It has good durability, resistance to low cycle fatigue, hot airaging, ozone aging, acid resistance, waterresistance, and alifespan of over 60 years,
· According to customer needs, monitoring systems and fireprevention technology can be provided

Application cases

Editor in Chief and Participated in the Compilation of Some Standards for this System by OVM

Number Standard type Standard name Standard number Participate in editing
1 Transportation industry standards Lead core seismic isolation rubber bearings for highway bridges JTIT 822-2011 Preside over
2 Transportation industry standards Bridge ultra-high damping isolation rubber bearings JT/T928-2014 Preside over
3 Chinese Highway Society Standards Elastic Anchorage Multidirectional Displacement Comb Plate Expansion Device for Highway Bridges T/CHTS 20028-2022 Preside over



Certificate

Guangdong Science and Technology Award Certificate

Guangxi Science and Technology Award Certificate

Hubei Science and Technology Award Certificate

Guangxi Science and Technology Award Certificate

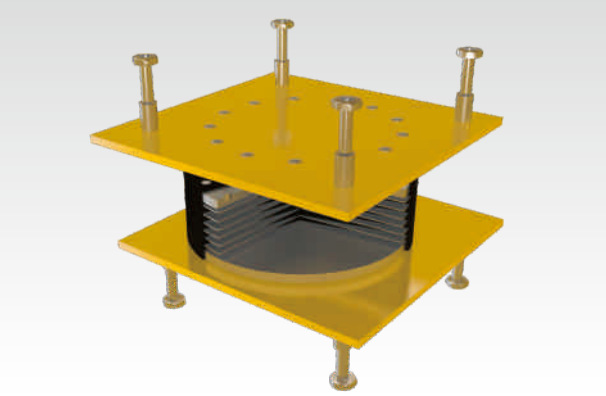

LRB Lead-core Rubber Bearing

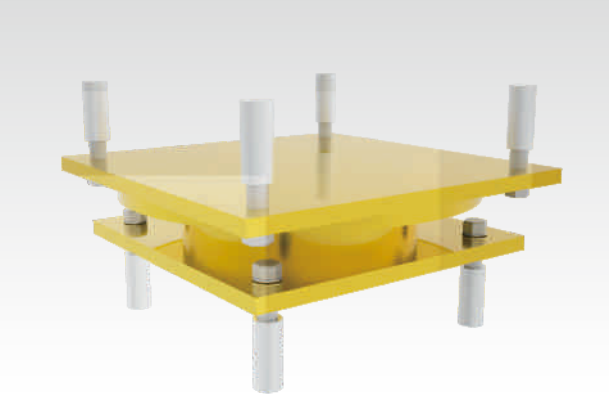

Pendulum Bearing

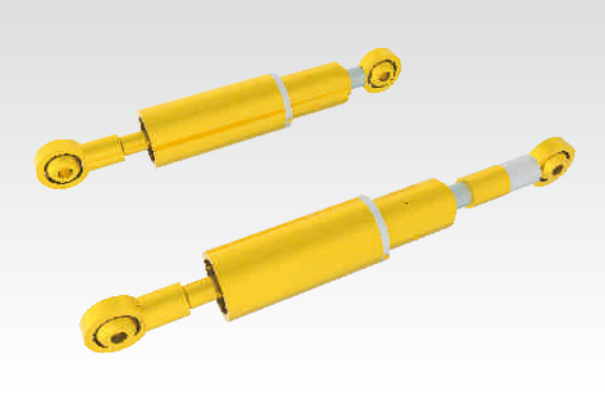

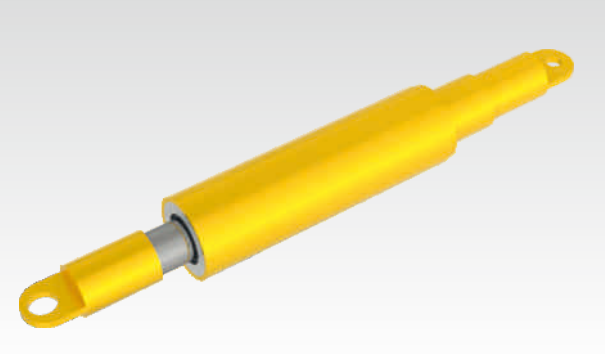

 Viscous Fluid Damper

Permanent Magnet Adjustable
Magnetorheological Damper

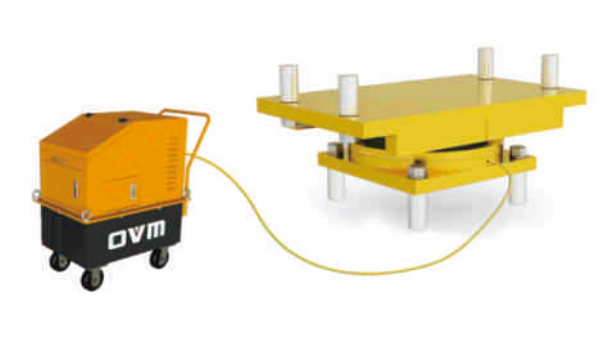

Force monitoring and
adjusting bearing

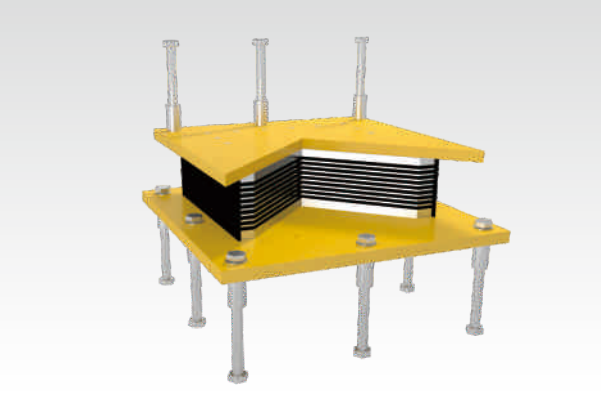

High Damping Rubber Bearing

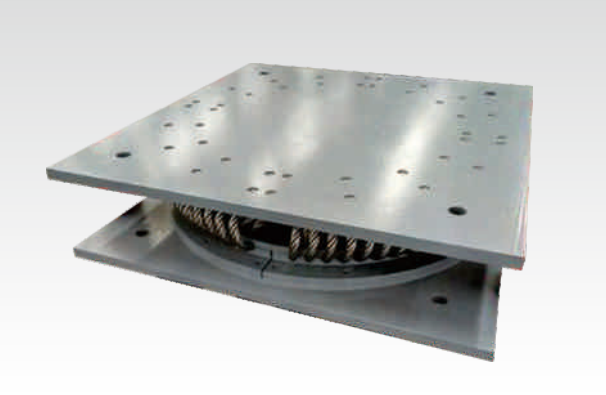

Steel wire rope Bearing

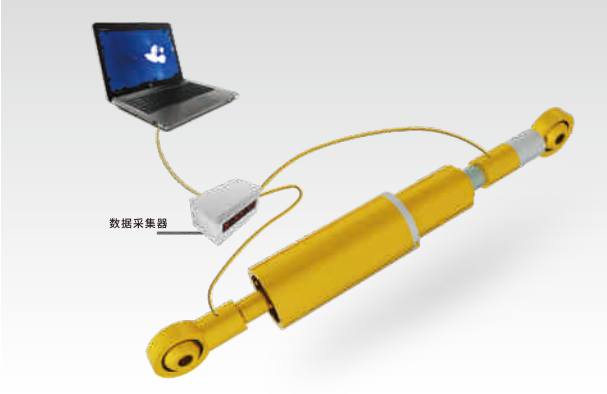

Intelligent Viscous Fluid Damper

Eddy Current Tuned Mass
Damper

Polyurethane bearing

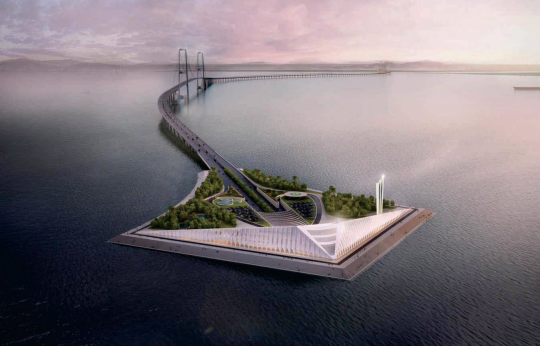

Shenzhen-Zhongshan Connection Line (2020) - Applied anchorage and pendulum bearing with different performance in each direction.

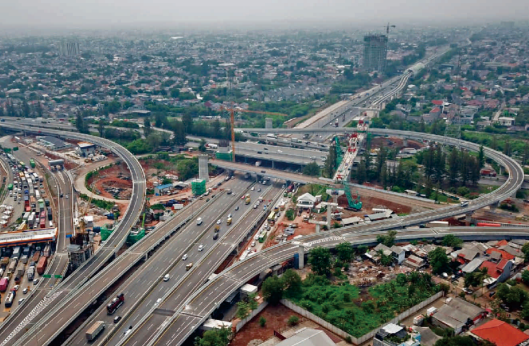

Indonesia JAPEK Project (2018)
The project is located in the earthquake zone of Indonesia, and the entire elevated bridge uses a seismic isolation system. It is the largest overseas anti-seismic bearing project of OVM Company. And the bearing of this project has completed the type-test following European standard series in the Italian laboratory.

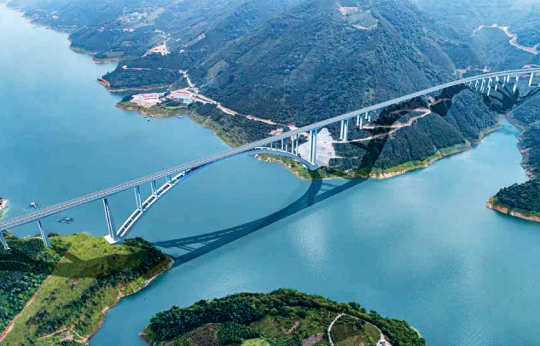

Tian'e Longtan Bridge (2024)
- with a main span of 600 meters, the world's largest span rigid frame concrete arch bridge, applied intelligent height-adjustable bearing.

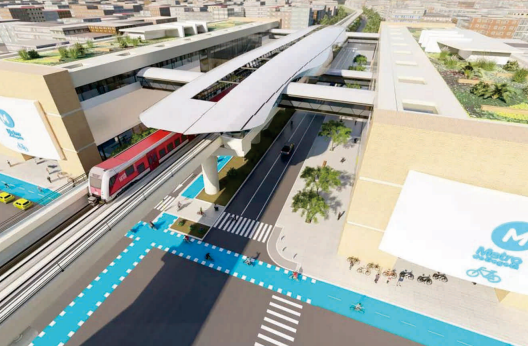

Bogota Metro Line 1, Colombia, 2024
OVM’s largest bearing project in the South American market, in which has successfully applied anti-seismic and anti-lifting bearings to the rail transit field under the American standard.
