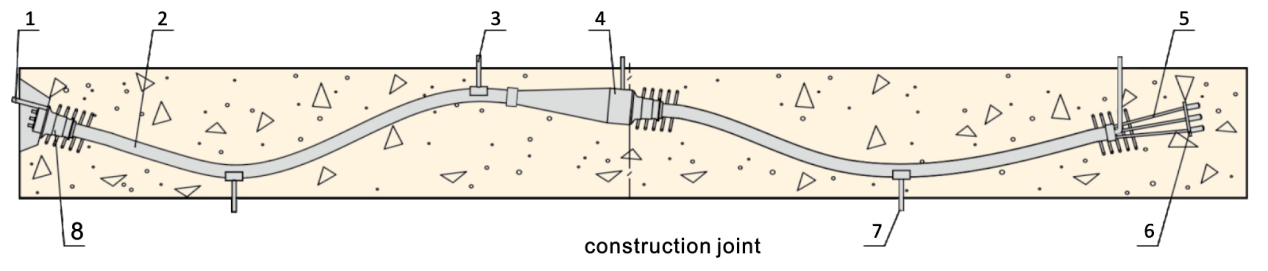

Post-tensioning system

1.Grouting tube   2.Duct   3.Vent   4.Coupler   5.Dead-end anchorage type P (alternatively)   6.Anchor plate   7.Grouting/Drainage   8. Stressing-end anchorage

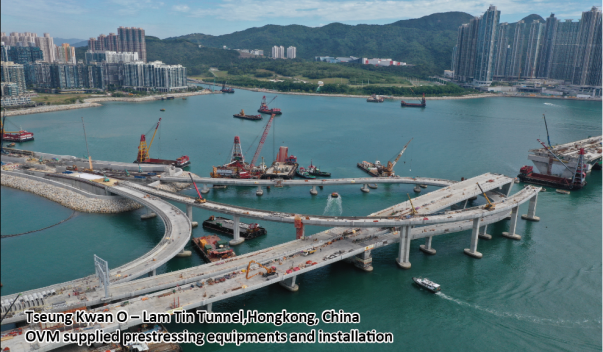

Tseung Kwan O –Lam Tin Tunnel,Hongkong, China

OVM supplied prestressing equipments and installation

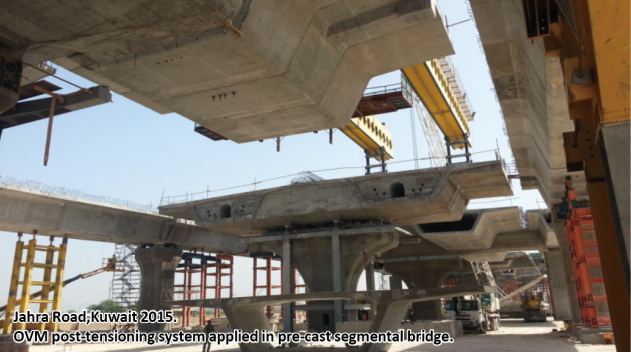

Jahra Road,Kuwait 2015.
OVM post-tensioning system applied in pre-cast segmental bridge.

· Matched strands with various diameters such as 12.5/12.7/12.9mm, 15.24/15.7mm, 21.8mm, 28.6mm.

  Adaptable for strand with various strength from 1860MPa to 2200MPa.

· FulI range of tendon sizes are available(1~ 55 strands and other sizes could be customized upon demands).

· High anchoring coefficient, reliable and stable.

· Various identical accessories available upon particular requests.

· Comply with the international specifications and recommendations AASHTO, ASTM, BS, EAD160004-00-0301, FIP, GB, JIS,      PTI, etc.

· Reliable equipment for installation,tensionin and grouting

Features

OVM Post-tensioning System consists of anchorage(stressing-end, dead-end), coupler, strand , duct,ect.
